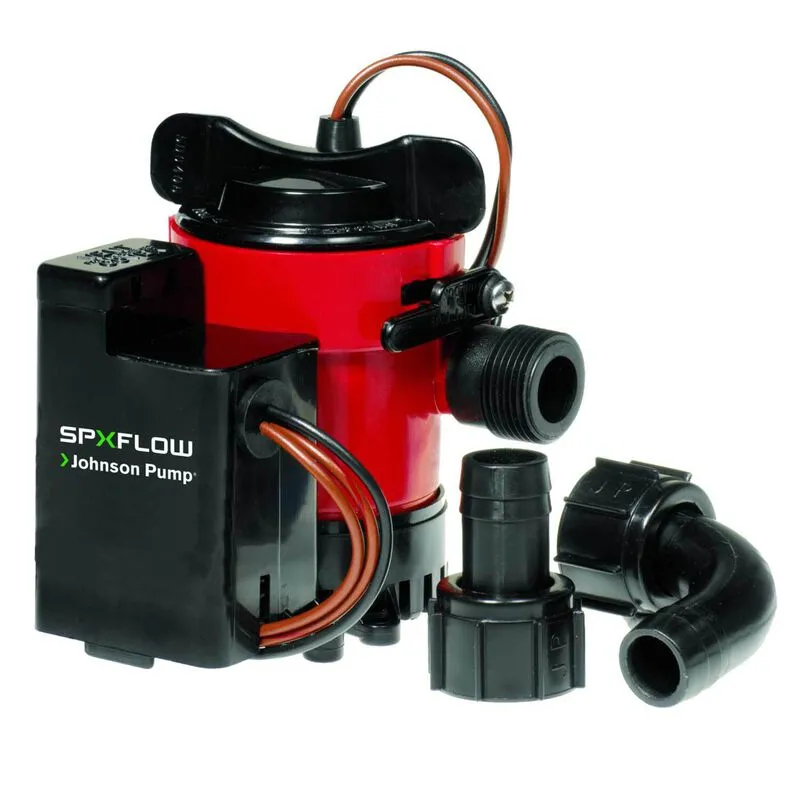

Johnson Pump Marine Cartridge Combo bilge pumps are JPM's proven Cartridge Bilge Pumps combined with a non-clogging electro-magnetic float switch for automatic operation. The switch reacts to the level of water present in the bilge and automatically activates and deactivates the pump.
- Automatic Submersible Bilge Pump
- Limited 3 Year Warranty
- Pre-configured with an electro-magnetic float switch for automatic operation
- Capacities 500 GPH, 750 GPH and 1250 GPH
- Energy efficient
- Water-cooled motor for long service intervals
- Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
- No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
- 500 GPH, 750 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
- 500 GPH, 750 GPH pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
- Meets the international standard, ISO 8849 marine
| Description | Capacity 3 ft (0.9 m) head (13.6V/27.2V) | Capacity straight (13.6V/27.2V) | Voltage | Amp | Fuse Size |
| Cartridge Combo 500 GPH 12V | 33 l/min - 525 GPH | 40 l/min - 630 GPH | 12 V | 2.5 A | 5 A |
| Cartridge Combo 750 GPH 12V | 44 l/min - 700 GPH | 50 l/min - 800 GPH | 12 V | 3 A | 5 A |
| Cartridge Combo 1250 GPH 12V | 60 l/min - 952 GPH | 73 l/min - 1150 GPH | 12 V | 3 A | 5 A |
| * Does not include Dura-Port connection | |||||
