Details
Facet Silver Top Cylindrical Fuel Pump Kit 476087-k
An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10 E85 Compatible.

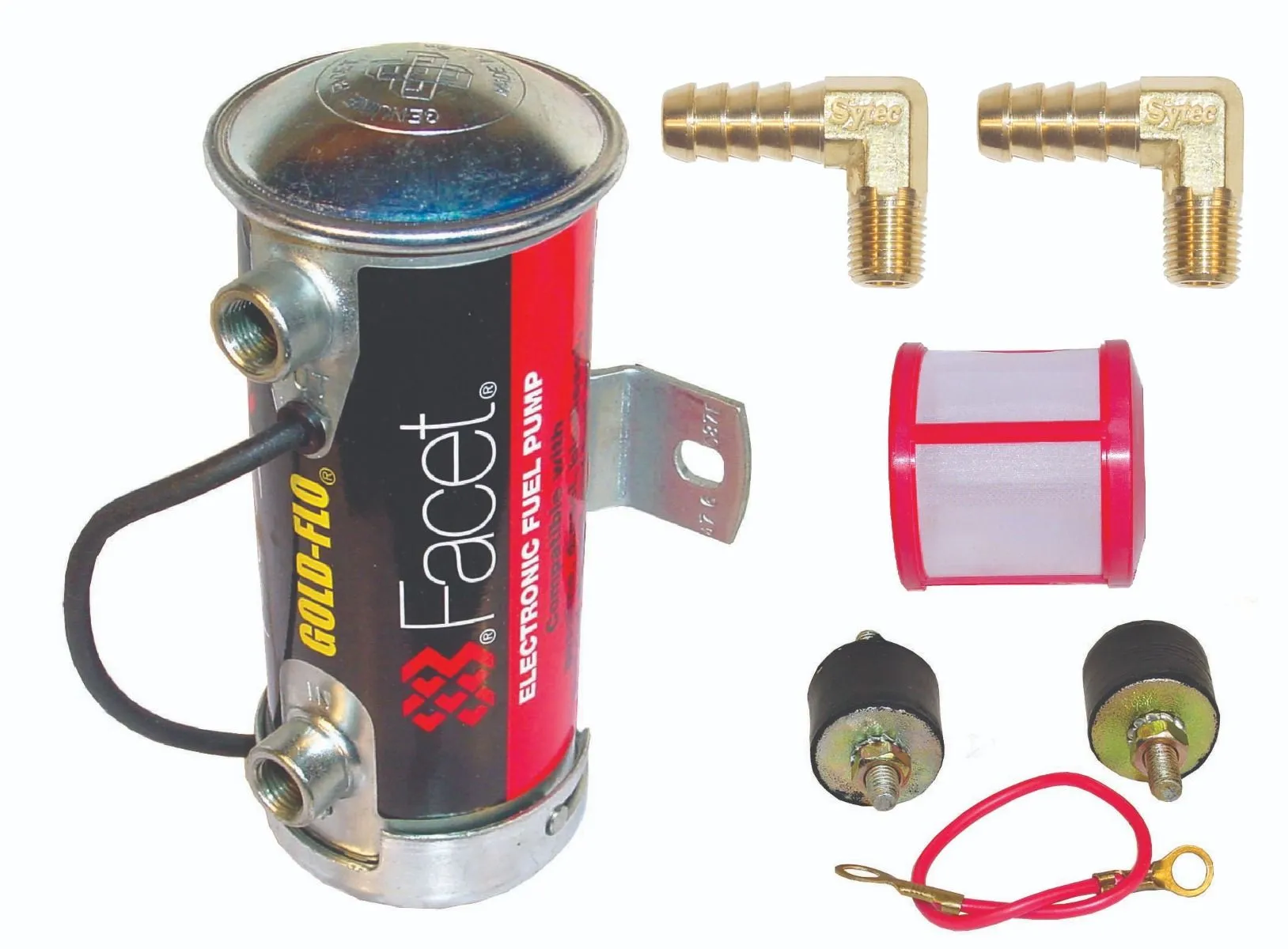

Contents

1x Pump (476087)

2x 8mm 90 Degree Union (FPA9011)

1x Facet Mounting Kit (FPA905)

1x Spare Filter (FPA908R)

Specification
Pump:- 476087E
Voltage:-12v
Earth:- Neg
Pressure (Psi):- 4.0-5.5
Flow:- US Gallons/Hr 30 = 114 L/hr.
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 1/8th nptf
Operating Temperature:- -40 to 180 F (all Models)

Legal Requirements:- Certified & Complies With EEC 95/54 Requirements

Length:-140mm

Diameter:- 54mm

Weight:-0.7kg

Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal

Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight

Fits on: 100-4, 100-6, GT6, HERALD, MGA, MGB, MGC, MIDGET, MINI, MINOR, SPITFIRE, SPRITE, STAG, TA, TB, TC, TD, TF, TR2, TR3, TR3A, TR4, TR4A, TR5, TR6, VITESSE
