ENGINE SPECIFICATIONS
GX200 Honda air cooled engine
Single cylinder, 4-stroke gasoline engine
12V electric start with recoil start as backup
0.8 gallon (3.1 l) integrated fuel tank
Charge coil 12V 3A
INCLUDED ACCESSORIES
Low oil alert

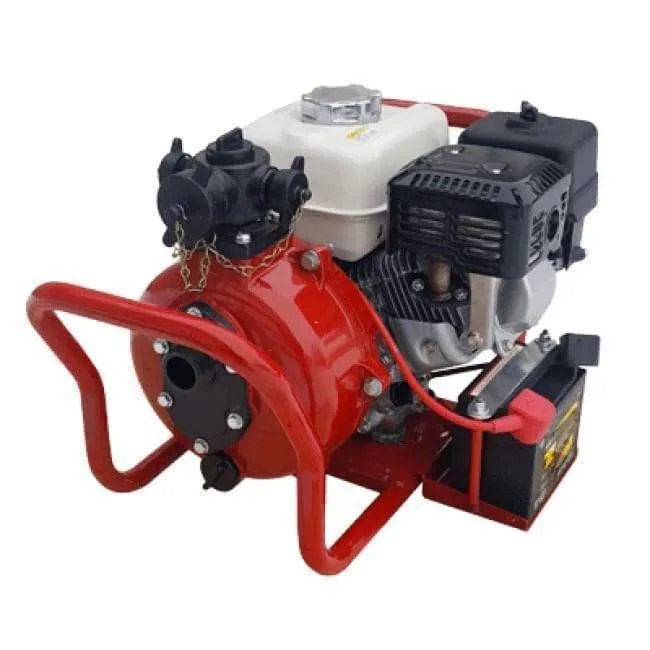

PUMP UNIT SPECIFICATIONS
C.E.T. dual stage centrifugal pump
Pump body made from aluminum
Aluminum impeller
Mechanical shaft seal
Self priming system
Two 1Ó (25 mm) delivery outlets and one 1 1Ú2Ó (38 mm) NPSH delivery outlet
One 1 1Ú2Ó (38 mm) NPSH suction inlet
Dimensions: Length: 24-1/2ÕÕ (620 mm) Width: 18-1/2ÕÕ (470 mm); Height: 16ÕÕ (410 mm)
Wet weight: 92 lbs (42 kg)

70 GPM @ 12 PSI
65 GPM @ 50 PSI
45 GPM @ 100 PSI
45 GPM @ 125 PSI
