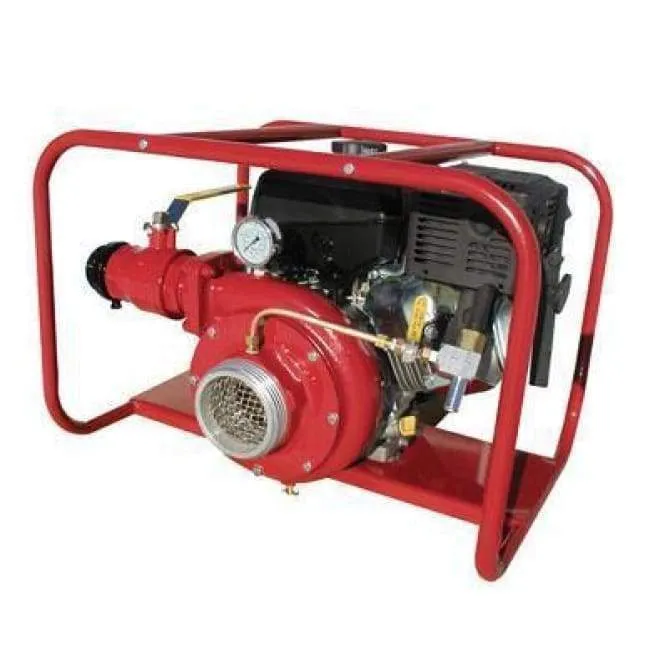

ENGINE SPECIFICATIONS
CH440 Kohler air cooled engine
Single cylinder, 4-stroke gasoline engine
12V electric start with recoil start as backup
1.8 gallon (7 l) integrated fuel tank
10 amp. charging system
INCLUDED ACCESSORIES
Pressure gauge
Full roll cage
PUMP UNIT SPECIFICATIONS
C.E.T. single stage centrifugal pump, direct drive ¥ Pump body made from high resistance aluminum alloy
Bronze impeller
Mechanical shaft seal
Exhaust priming system, guaranteed up to 20Õ (6 meter) lift
One 2 1/2Ó(65 mm) NST delivery outlets with 1/4-turn ball valve
One 4Ó (100 mm) NST suction inlet
Dimensions: Length: 27Ó (685 mm); Width: 20.5Ó(520 mm); Height: 19.5Ó (495 mm)
Wet Weight: 176 lbs (80 kg)

376 GPM @ 5 PSI
350 GPM @ 10 PSI
300 GPM @ 25 PSI
200 GPM @ 50 PSI
90 GPM @ 75 PSI
