Pan Depth: 8”
Pan Capacity: 5 Quarts (4.7 Liters)
System Capacity: 6 Quarts (5.7 Liters)

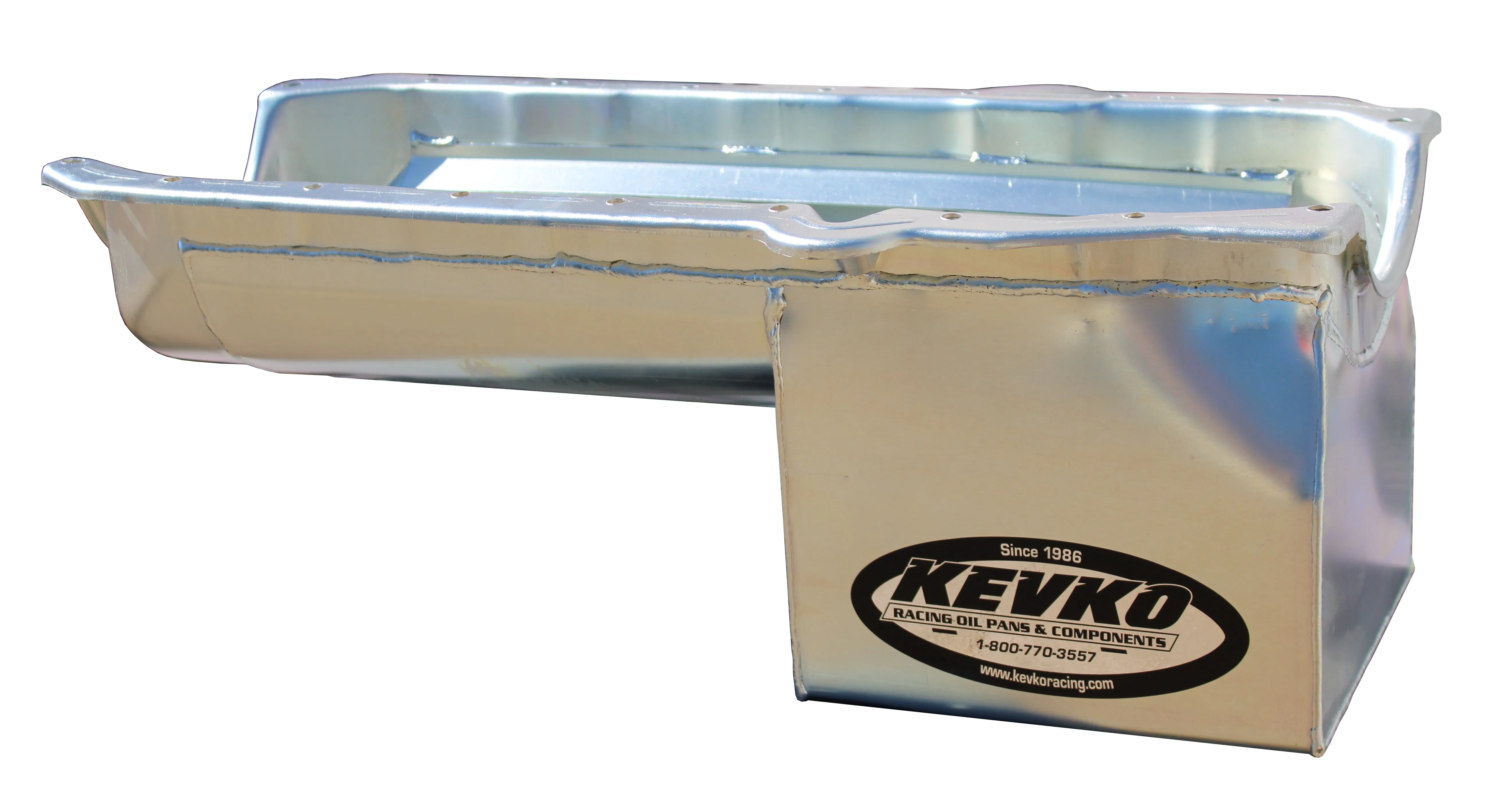

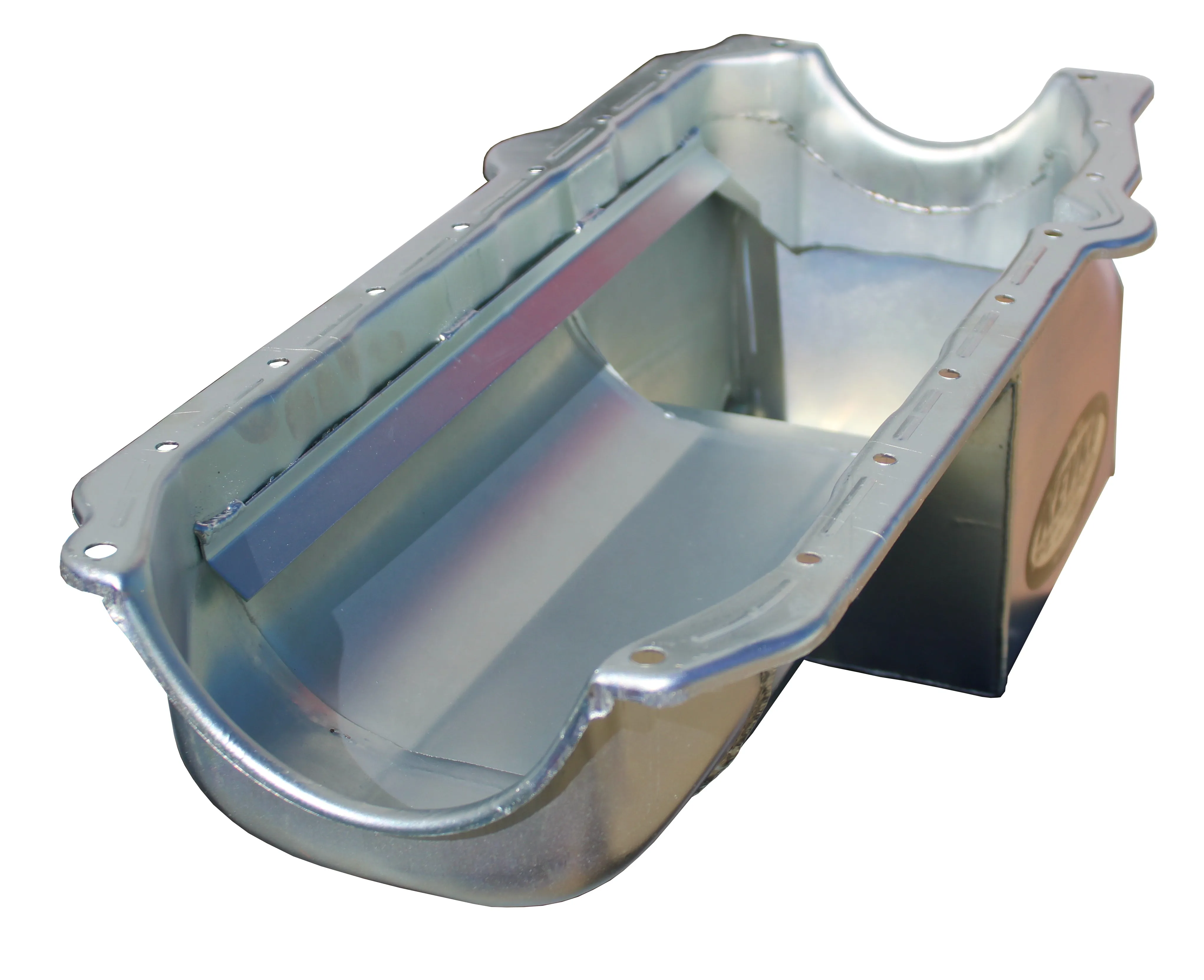

Description: Front depth of pan is 3-7/8" deep. Sump is 8" Long & 7.5" Wide & 8" Deep. Shallowest front pan dimension on the market that will still clear a 4" Stroke crank! Perfect fit for the Vega/Monza guys!
| Oil Pump/Pickup Tube Reference | |||
| Pump | Pickup Diameter | Kevko Pickup Tube | |
| M55, M55A, 10553ST | 5/8 | ||
| M155, 10554ST | 3/4 | ||
| M55HV, 10550ST | 5/8 | ||
| M155HV, 10551ST | ¾ | ||
| 10555ST, 10552ST | ¾ Bolt On |
Related Products
Pumps
| Standard Volume, Standard Pressure, 5/8" | ||
| Standard Volume, High Pressure, 5/8" | ||
| Standard Volume, Standard Pressure, 3/4" | ||
| High Volume, Standard Pressure, 5/8" | ||
| High Volume, Standard Pressure, 3/4" | ||
| Performance-25% Increased Volume, High Pressure, Shark Tooth, 5/8" | ||
| Performance-High Volume, High Pressure, Shark Tooth, 3/4" | ||
| Performance-10% Increased Volume, High Pressure, Shark Tooth, 3/4" | ||
| Performance-Stock Volume, High Pressure, Shark Tooth, 5/8" | ||
| Performance-Stock Volume, High Pressure, Shark Tooth, 3/4" | ||
| Performance-25% Increased Volume, High Pressure, Shark Tooth, 3/4" |
Gaskets
| Part # | Application | |
| Left Hand Dipstick – 2 Piece Rear Seal (1957-1979) | ||
| Left or Right Hand Dipstick – 2 Piece Rear Seal (1957-1985) | ||
| Right Hand Dipstick - 2 Piece Rear Seal (1980-1985) | ||
| Right Hand Dipstick - 1 Piece Rear Seal (1986-Up) |
Miscellaneous Accessories
| Part # | Description | |
| Oil Pan Bolt Kit | ||
| Oil Pan Support Rails (57-79 LH Dipstick) | ||
| High Pressure Oil Pump Spring | ||
| Drain Plug | ||
| Magnetic Drain Plug | ||
| ARP Oil Pump Stud | ||
| Melling Intermediate Oil Pump Drive Shaft |
